Examples¶

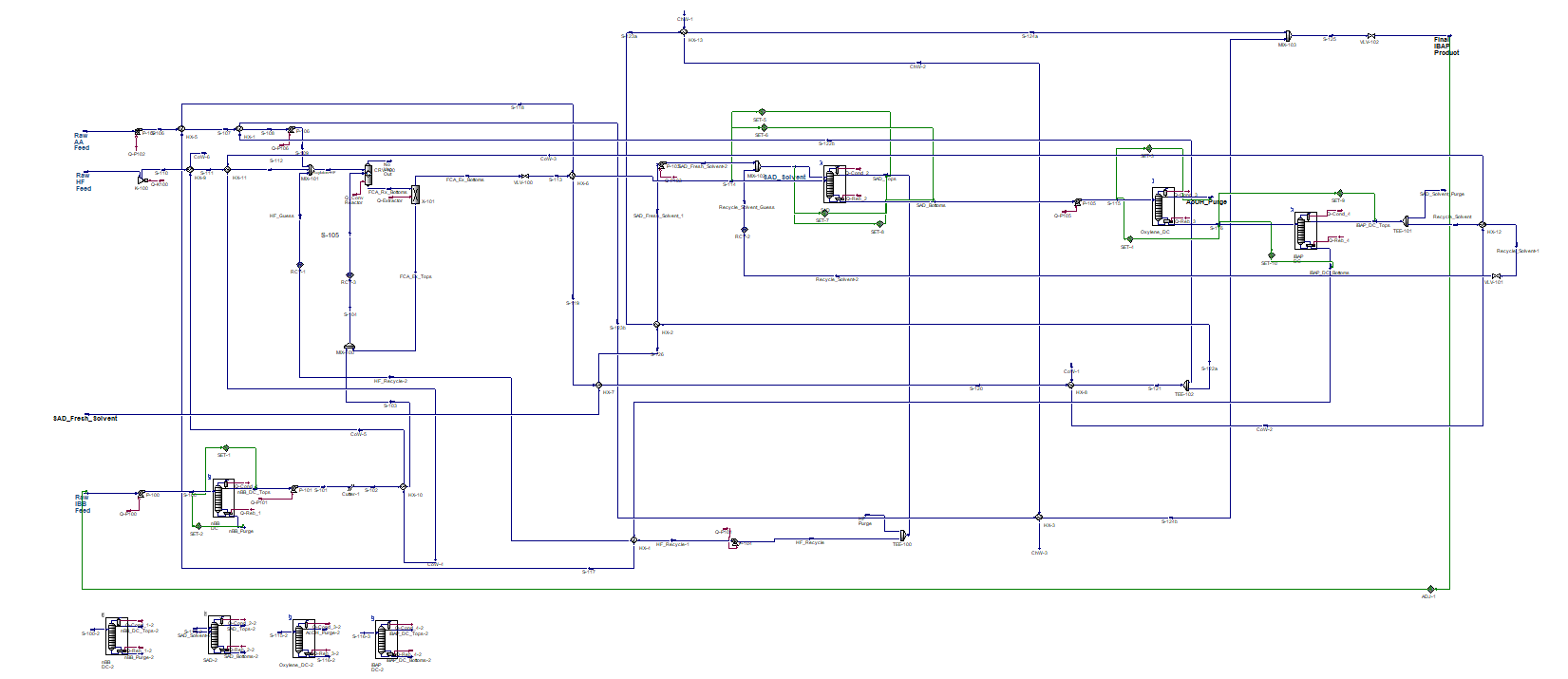

Below are examples that run on a file simulating 4-isobutylacetophenone production.
Printing properties of objects present on the flowsheet¶
Output
Column:
SAD (HYSYS Distillation)
{'SAD_Solvent': SAD_Solvent (HYSYS Material Stream), 'S-112': S-112 (HYSYS Material Stream)}
-> Compressor:
K-100 (HYSYS Compressor)
Raw HF Feed (HYSYS Material Stream)
S-110 (HYSYS Material Stream)
Q-K100 (HYSYS Named Object)
-> Pump:
P-102 (HYSYS Pump)
Raw AA Feed (HYSYS Material Stream)
S-106 (HYSYS Material Stream)
Q-P102 (HYSYS Named Object)
-> Valve:
VLV-100 (HYSYS Valve)
FCA_Ex_Bottoms (HYSYS Material Stream)
S-113 (HYSYS Material Stream)
-> Recycle:
RCY-1 (HYSYS Recycle)
HF_Recycle-2 (HYSYS Material Stream)
HF_Guess (HYSYS Material Stream)
PFDs=('PFD 1',) (HYSYS Dictionary)
(HYSYS Object)
{'Centre', 'name', 'Invoke', 'Items', 'Release', 'GetTypeInfo', 'QueryInterface', 'GetIDsOfNames', 'Application', 'GetTypeInfoCount', 'MoveBy', 'Parent', 'IsValid', 'AddRef', 'Extent', 'ExportSvg'}
(HYSYS Object)
Time taken for ./examples/test.py: 0.875s
Listing all unit operations¶
Output
Unit operation names:
pumpop: P-100, P-103, P-101, P-105, P-104, P-106, P-102
valveop: VLV-100, VLV-101, VLV-102
mixerop: MIX-103, MIX-102, MIX-100, MIX-101
teeop: TEE-102, TEE-101, TEE-100
distillation: Oxylene_DC, SAD, iBAP DC, nBB DC
streamcutterop: Cutter-1
adjust: ADJ-1
recycle: RCY-3, RCY-1, RCY-2
setop: SET-1, SET-3, SET-7, SET-5, SET-8, SET-10, SET-6, SET-4, SET-2, SET-9
conversionreactorop: CRV-100
fractop: X-101
compressor: K-100
heatexop: HX-1, HX-6, HX-5, HX-3, HX-8, HX-2, HX-11, HX-10, HX-9, HX-4, HX-7, HX-12, HX-13
Time taken for ./examples/unitop_names.py: 0.340s
Validating common stream and unit operation properties¶
Output
Assertions failed:
-> The following streams have backflow:
-> The following streams are mixed-phase:
S-117 (0.015740653415418526)
-> The following column feeds are entering below tray pressure:
-> The following heaters have a temperature decrease:
-> The following coolers have a temperature increase:
-> The following pumps have non-positive duties:
-> The following pumps are privy to cavitation:
-> The following valves have non-positive pressure drops:
Flags raised:
-> The following streams have no flow:
No Vap Out (0.0)
Time taken for ./examples/simcase_validity.py: 3.986s
Flagging out heat exchanger temperature difference violations¶
Output
-> Heat exchanger names:
['HX-1', 'HX-2', 'HX-3', 'HX-4', 'HX-5', 'HX-6', 'HX-7', 'HX-8', 'HX-9', 'HX-10', 'HX-11', 'HX-12', 'HX-13']
-> Heat exchanger data:
Name Duty Hot stream in ... T_c,in T_c,out CP_c
0 HX-1 0.001840 S-107 ... 55.000000 55.011491 0.160112
1 HX-2 3.847337 S-122a ... 31.816451 52.318724 0.183714
2 HX-3 4.684739 S-123b ... 10.000000 15.000000 0.935256
3 HX-4 0.267627 iBAP_DC_Bottoms ... 40.832477 60.000000 0.028875
4 HX-5 8.177283 S-117 ... 25.157351 60.000000 0.224818
5 HX-6 6.184702 S-118 ... 40.000000 52.367624 0.509054
6 HX-7 1.243681 S-119 ... 25.000000 31.816451 0.181212
7 HX-8 90.600468 S-120 ... 30.000000 33.740000 24.181472
8 HX-9 5.753061 S-110 ... 39.806632 40.042194 24.419687
9 HX-10 34.360067 S-102 ... 38.398525 39.806632 24.383589
10 HX-11 13.046271 S-111 ... 37.863335 38.398525 24.370037
11 HX-12 100.274960 Recycle_Solvent ... 33.740000 37.863335 24.268710
12 HX-13 1.951437 S-123a ... 7.911999 10.000000 0.933907
[13 rows x 13 columns]
-> Minimum temperature diff. violations:
Name T_h,in T_c,out T_h,out T_c,in
0 HX-1 60.0 55.011491 59.992489 55.000000
1 HX-2 55.0 52.318724 35.270000 31.816451
Time taken for ./examples/pinch_violations.py: 4.551s
Single feed optimisation of distillation columns¶
Step 1:
✅ All required imports have been successfully imported.
Step 2:
1. Column: nBB DC-2, Feed: S-100-2, Bounds: (38, 73)
2. Column: Oxylene_DC-2, Feed: S-115-2, Bounds: (8, 32)
3. Column: iBAP DC-2, Feed: S-116-3, Bounds: (4, 18)
4. Column: SAD-2, Feed: S-114-2, Bounds: (3, 9)
Please enter the desired column profile: 1
Column: nBB DC-2, Feed: S-100-2, Bounds: (38, 73)
Is this the column profile you wish to continue with? [y/N]: y
✅ Column profile chosen: '1'
Step 3:
✅ Running HYSYS Case: C:\Users\Hari\OneDrive\Documents\Development\Python\aspen-pysys\examples\Team_10.hsc
Step 4:
✅ All unit operations required for optimisation are valid!
Column: nBB DC-2
✅ Design variable bounds have been set!
Stage count: 38 -> 73
Step 4:
Stage count=73: 100%|███████████████████████████████████████████| 36/36 [09:39<00:00, 16.10s/it]
✅ Condenser and reboiler duty data has been exported to 'C:\Users\Hari\OneDrive\Documents\Development\Python\aspen-pysys\examples\single-feed-col-opt\Team_10.csv'!
Step 5:
C:\Users\Hari\OneDrive\Documents\Development\Python\aspen-pysys\examples\single-feed-col-opt\collect.py:244: UserWarning: The figure layout has changed to tight
plt.tight_layout()
